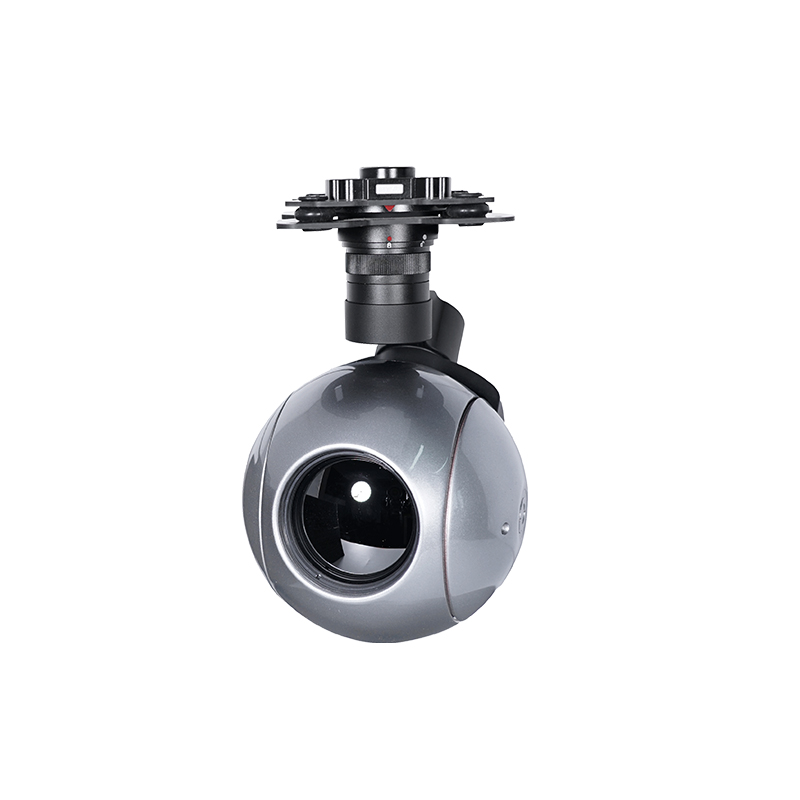

QIR50T 50mm Drone Termal Gimbal Kamera

Görüşünü yaz

CODE:

Gimbal_001

Out of stock

Compare Soru Sorun

Delivery

Payment options

Our advantages

>td >Lens size>td >Update rate of deviation pixel

Hardware Parameter
Working voltage	12V ~ 16V
Input voltage	3S ~ 4S
Dynamic current	500mA @ 12V
Idle current	400mA @ 12V
Power consumption	? 3.85W
Working environment temp.	-20 ? ~ +50 ?
Output	micro HDMI(HD output 1080P 60fps) / IP
Local-storage	SD card (Up to 128G, class 10, FAT32 or ex FAT format)
Control method	PWM / TTL / S.BUS / TCP
Gimbal Spec
Pitch/Tilt	±90°
Roll	±85°
Yaw/Pan	±170°/360°*N(IP/SDI output version)
Vibration angle	Pitch/Roll: ±0.01°, Yaw ?±0.01°
One-key to center	?

50mm
Horizontal FOV	12.4°
Vertical FOV	9.3°
Diagonal FOV	15.5°
Detective Distance (Man: 1.8×0.5m)	1471 meters
Recognize Distance (Man: 1.8×0.5m)	368 meters
Verified Distance (Man: 1.8×0.5m)	184 meters
Detective Distance (Car: 4.2×1.8m)	4510 meters
Recognize Distance (Car: 4.2×1.8m)	1127 meters
Verified Distance (Car: 4.2×1.8m)	564 meters
Working mode	Uncooled long wave (8?m~14?m) thermal imager
Detector pixel	640*480
Pixel size	17?m
Focusing method	Athermal prime lens
Emissivity correction	0.01~1
NETD	?50mK (@25 ? )
MRTD	?650mK (@characteristic frequency)
Image enhancement	Auto adjust image brightness and contrast ratio
Color palette	White, iron red, pseudo color
Auto Non-uniform correction	Yes (no shutter)
Digital zoom	2x, 4x
Sync correct time	Yes
>td >Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional)

25Hz
Output delay of deviation pixel	<3ms
Minimum object size	32*32 pixel
Maximum object size	128*128 pixel
Tracking speed	±48 ~ ±192 pixel/frame
Object memory time	100 frames (4s)
Packing Information
NW	g
Product meas.	mm
