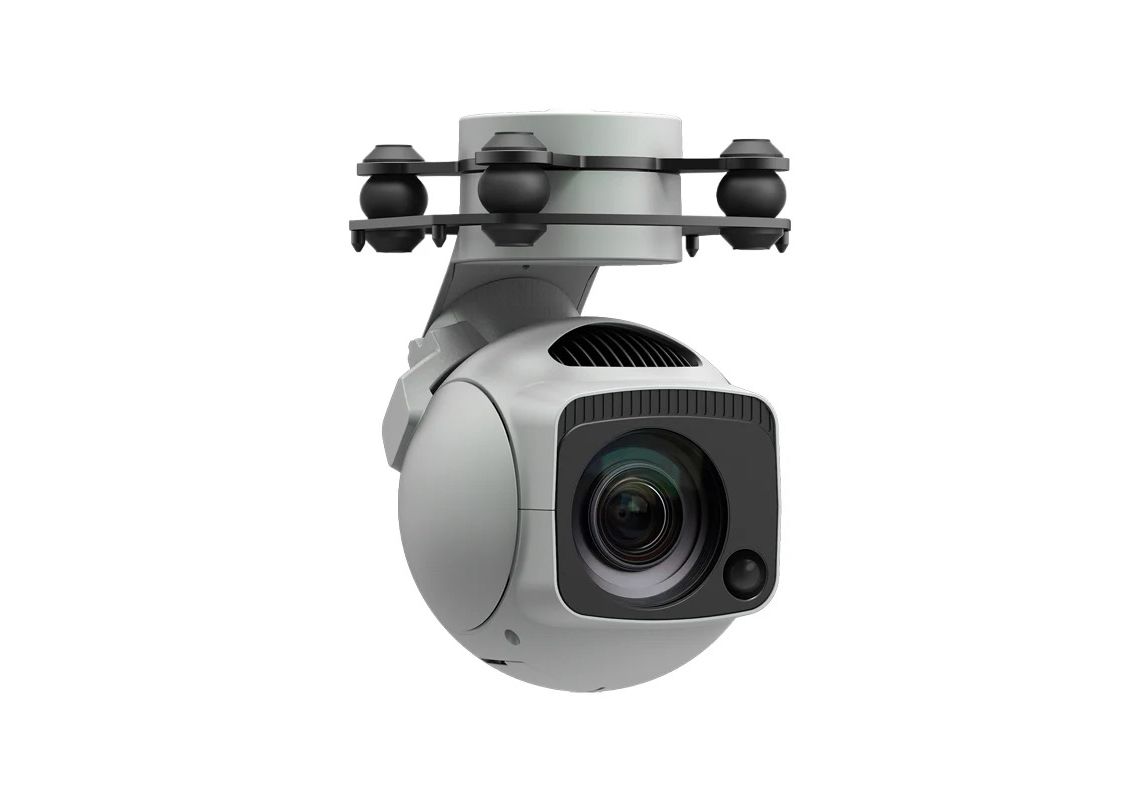

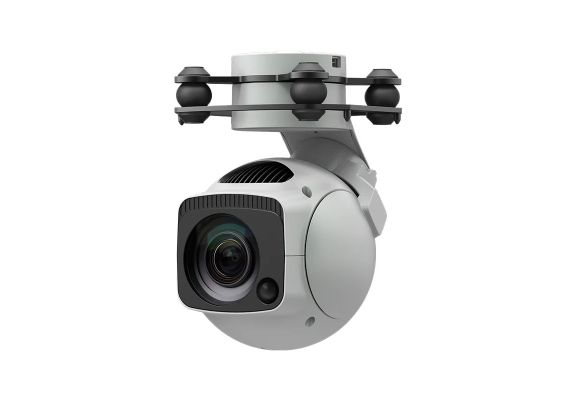

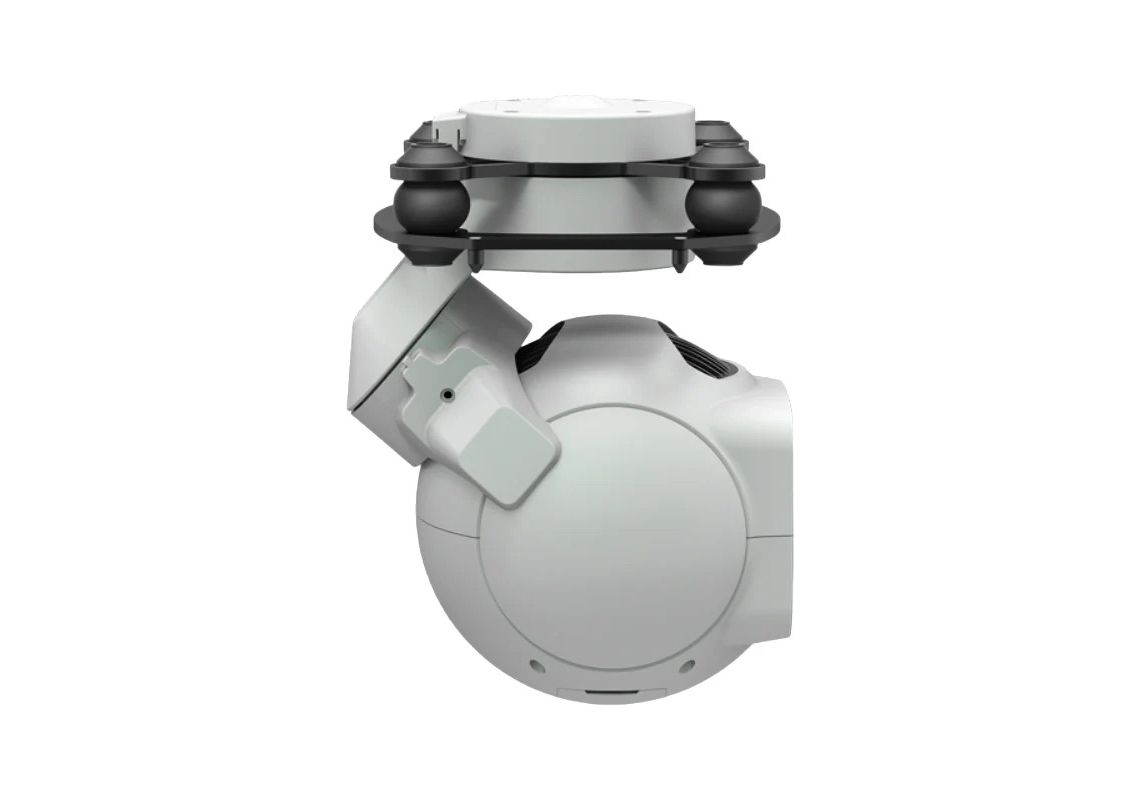

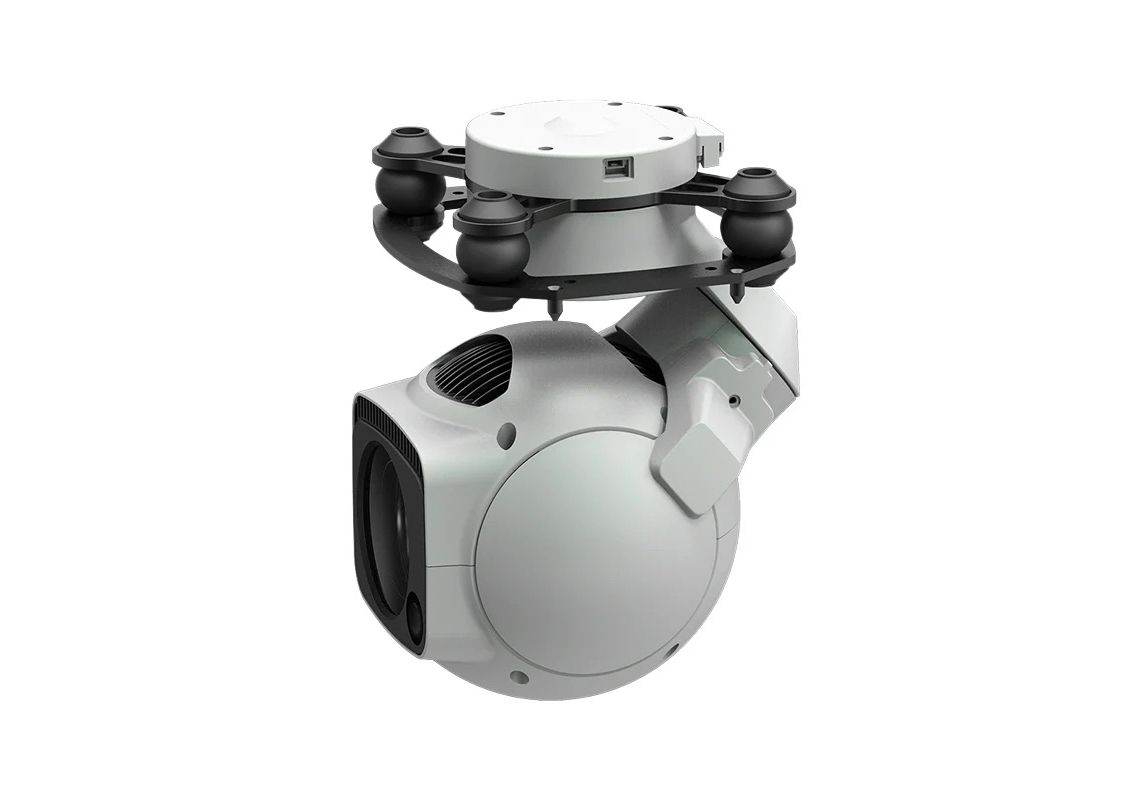

D-80Pro 40x-4K Spherical Gimbal

Characteristics

• Carries an 8.29M pixels 40x hybrid zoom camera, which provides a video resolution of 4K@30fps and an image resolution of 3840x2160.
• Laser lighting module ensures the camera getting a clear image even in complete darkness.
• Features auto target tracking, which can constantly track the target selected on screen.
• Low-profile spherical shape and 3-axis nonorthogonal mechanical stabilized structure, minimize the gyration radius and the wind resistance of the gimbal. The D-80Pro is able to spin continually around its yaw axis.
• With the GCU, the D-80Pro supports network, UART and S.BUS control. The GCU supports both private protocol and MAVLink protocol.
• Thanks to the Dual-IMU complementary algorithms with IMU temperature control and carrier AHRS fusion, the D-80Pro provides a stabilization accuracy at ±0.01°.
• Can be mounted onto multiple carriers, whether downward or upward.
• With the GCU and the Dragonfly software, user can watch the image and control the gimbal without protocol ducking.
• Screen supports overlaying OSD information such as latitude, longitude and altitude. Image supports shooting point coordinate EXIF save.
• Supports ONVIF protocol.
• 14~53 VDC wide voltage input.

Specifications

[1] Reference dimension of person: 1.8x0.5m. Critical dimension under Johnson criteria is 0.75m
[2] Reference dimension of light vehicle: 4.2x1.8m. Critical dimension under Johnson criteria is 2.3m
[3] Reference dimension of large vehicle: 6.0x4.0m. Critical dimension under Johnson criteria is 4.9m
